Residential Large-Format LED Display Systems (108"–317") for Indoor & Outdoor Installation

YOLO TV pioneered the large-format residential outdoor television market and now engineers complete indoor and outdoor LED display environments for luxury homes, estates, and high-end short-term rental properties.

Start Design Review Explore YOLO TV Systems
The Original Large-Format Residential Outdoor TV Company
YOLO TV 158-inch outdoor installation in Paradise Valley, AZ

Outdoor: YOLO TV 158" / Paradise Valley, AZ

YOLO TV 136-inch indoor installation in Chicago, IL penthouse

Indoor: YOLO TV 136" / Chicago, IL

The Pioneer of Large-Format
Residential LED Displays

Architectural-scale LED display systems for permanent installation

YOLO TV designs and installs LED display systems ranging from 115 inches to over 317 inches, engineered specifically for indoor and outdoor residential environments.

Unlike traditional televisions or consumer-grade outdoor screens, YOLO TV systems are commercial-grade LED installations built for:

Full sun exposure
Coastal humidity and salt air
Extreme heat and cold
Permanent integration into new construction or remodels

YOLO TV is not an indoor TV with a cover.

It is a purpose-built residential LED display system.

YOLO TV 202-inch outdoor LED installation in Pass Christian, MS

YOLO TV 202" Wall Mount / Pass Christian, MS

Outdoor LED Display Systems

Engineered for permanent installation in luxury outdoor environments

Our outdoor systems are engineered for permanent installation in luxury backyards, pool builds, rooftop terraces, and estate properties.

Outdoor systems feature:

Up to 6,000+ nits brightness for full sun visibility
IP65 weather-sealed enclosures
100,000+ hour lifespan (half-brightness)
Commercial-grade LED panels
Seamless architectural integration
Optional lift and concealment systems

These systems are designed to function year-round in sun, rain, humidity, and snow.

Explore Outdoor LED Systems →

Outdoor LED Display Sizes

Seven standard sizes available (115", 138", 158", 202", 246", 273", 317"). All displays shown in 16:9 aspect ratio. IP65 weather-sealed enclosures with aluminum and carbon fiber construction deliver ultra-high brightness, refresh rate, and color palette. Multiple pixel spacing options (pitch) available—so you get the perfect viewing distance for your space. Period.

115"
115 inches
8'2 7/16" × 4'11 ⅛"
Display size W×H (ft × in)
138"
138 inches
9'10 ¼" × 5'8 ¾"
Display size W×H (ft × in)
158"
158 inches
11'5 13/16" × 6'6 ¾"
Display size W×H (ft × in)
POPULAR
202"
202 inches
14'9 9/16" × 8'2 7/16"
Display size W×H (ft × in)
POPULAR
246"
246 inches
18' 1/16" × 9'10 ¼"
Display size W×H (ft × in)
273"
273 inches
19'8 ¼" × 11'5 13/16"
Display size W×H (ft × in)
317"
317 inches
22'11 5/16" × 13'1 ¼"
Display size W×H (ft × in)
CUSTOM
Custom
Custom Sizes
Tailored dimensions
Unique outdoor spaces

All displays shown in 16:9 aspect ratio. IP65 weather-sealed enclosures, wide viewing angles, ultra-brightness with multiple pixel spacing options to choose from for ideal viewing distances.

Back to Top

Indoor LED Display Systems

Seamless large-format LED display walls for luxury residential spaces

YOLO TV indoor systems replace traditional televisions with seamless large-format LED display walls.

Ideal for:

Great rooms
Media rooms
Luxury living spaces
Estate entertainment areas
High-end short-term rental properties

Indoor systems provide:

Wall-scale LED displays
Ultra-high refresh rates (7,680Hz)
MicroLED technology options
Flush architectural integration
Custom sizing based on viewing distance

These are permanent display installations — not oversized consumer TVs.

Explore Indoor LED Walls →
Indoor YOLO TV LED wall in luxury desert modern living room

YOLO TV 163" / Scottsdale, AZ

Indoor LED Wall Sizes

Six standard sizes available in HD and 4K UHD. Fine pixel pitch (0.9-2.5mm) with ultra-high refresh rates for close viewing.

108"
108 inches HD
7'10½" × 4'5⅛"
Display size W×H (ft × in)
136"
136 inches HD
9'10⅜" × 5'6⅞"
Display size W×H (ft × in)
163"
163 inches HD
11'9¾" × 6'7¾"
Display size W×H (ft × in)
4K UHD
163"
163 inches 4K UHD
11'9¾" × 6'7¾"
Display size W×H (ft × in)
217"
217 inches HD
15'9" × 8'10 9/16"
Display size W×H (ft × in)
4K UHD • POPULAR
217"
217 inches 4K UHD
15'9" × 8'10 9/16"
Display size W×H (ft × in)
CUSTOM
Custom
Custom Sizes
Tailored dimensions
Expansive great rooms & unique spaces

Six standard sizes available (108" HD, 136" HD, 163" HD/4K UHD, 217" HD/4K UHD). All displays shown in 16:9 aspect ratio. Custom configurations available for unique architectural spaces.

Back to Top
Screen Size & Planning

Residential LED Display Size & Viewing Distance Guide (115"–317")

YOLO TV systems range from 108 inches to over 317 inches. Proper screen size selection depends on viewing distance, pixel pitch, ambient light, and architectural layout.

Compact

108"–138"
  • Ideal for 7–14 ft viewing distance
  • Perfect for media rooms
  • Wall-mount or built-in
  • Equipment room: 4'×4' min

Grand

158"–220"
  • Ideal for 12–18 ft viewing distance
  • Living rooms, great rooms
  • Outdoor patios & poolside
  • Equipment room: 5'×6' min

Monumental

221"–317"+
  • Ideal for 18–30+ ft viewing distance
  • Outdoor entertainment areas
  • Resort-style installations
  • Equipment room: 6'×8' min
Screen Size Reference
Screen Size Min Distance Ideal Distance Room Type
108" 6 ft 7–11 ft Home Office
115" 8 ft 10–12 ft Media Room
138" 9 ft 11–14 ft Living Room
158" 10 ft 12–16 ft Great Room
202" 14 ft 16–20 ft Outdoor Patio
246"+ 18 ft 22–30 ft Estate Outdoor
Pixel Pitch Clarity
Pixel Pitch Min Distance Use Case
0.9mm 3–6 ft Home Office
1.25mm 4–7 ft Living Room
1.5mm 5–8 ft Close Viewing
1.9mm 7–10 ft Home Theater
2.9mm 10–14 ft Indoor/Outdoor
3.9mm 14+ ft Large Outdoor

Technical Note: Outdoor installations require greater viewing distance due to brightness levels and typical patio layouts. Indoor installations allow tighter viewing distances depending on pixel pitch selection.

Pixel Pitch Guidelines
Pixel Pitch Viewing Distance Application
0.9–1.2 mm 5–8 ft Home theater, office
1.5–1.8 mm 8–12 ft Living room, media room
2.0–2.5 mm 12–18 ft Great room
2.6–3.91 mm 18–25 ft Ballroom, estate room
4–6 mm 25–40 ft Outdoor, poolside, rooftop

Note: Final pixel pitch selection confirmed during design review based on viewing distance and content type.

Viewing Distance Guide
Office 5-8 ft Living Room 12-18 ft Outdoor 25+ ft Match screen size to your viewing distance

Pixel pitch is the spacing between LED pixels. Smaller pitch means tighter pixel density for close viewing. Larger pitch provides brightness for outdoor environments and longer viewing distances.

YOLO TV 190-inch indoor LED installation in Great Falls, VA

YOLO TV 190" Wall Mount / Great Falls, VA

Indoor Applications

Fine to medium pixel pitch (0.9-2.5mm)
Controlled lighting, close viewing distances

YOLO TV 246-inch outdoor LED installation in Miami Gardens, FL

YOLO TV 246" Wall Mount / Miami Gardens, FL

Outdoor Applications

Larger pixel pitch (3.9-6mm)
High brightness, weather-resistant, farther viewing

Installation Planning

Mounting Options & Planning Guide

Four proven mounting configurations for residential LED displays. Each method engineered for structural integrity, aesthetic integration, and long-term performance. Work with your architect and builder to select the optimal approach for your project.

Single Pole Frame Mount

Clean center-column support with integrated rear structural frame.

This configuration uses a single vertical structural column anchored into a reinforced concrete foundation. Behind the display, a custom-engineered steel frame distributes weight and wind load directly into the column.

The result: A clean, centered profile from the viewing side—without the complexity of a cantilever system.

This is one of the most popular solutions for open pool decks, screened enclosures, and properties where simplicity and strength must coexist.

What to Coordinate During Site Planning:

Because the pole mount becomes part of the landscape structure, early coordination is important. Your builder or contractor should account for:

  • Reinforced concrete foundation appropriate for local wind zone
  • Structural steel column sized for the selected display
  • Underground power and signal conduit routed before hardscape is completed
  • Proper finished display height aligned with viewing distance
  • Clearance for rear service access

Project-specific engineering documentation is provided prior to fabrication to ensure correct structural integration.

Best Suited For: Screen enclosures, open pool decks, properties in coastal or higher-wind regions, installations where rear structural access is available.

Foundation YOLO TV BIGGER BETTER BRIGHTER Display Viewing Height Deck/Pool Surface Single Pole Frame Mount (Front View from Pool/Viewing Side) Clean Centered Profile Frame behind display Direct load path to foundation

Dual Pole Frame Mount

Two-column support system for maximum wind resistance and large-scale displays.

This configuration uses two vertical support columns connected by a horizontal spanning frame. The display mounts to the center of that frame, creating a balanced structure engineered for large displays and high-wind environments.

The result: Superior load distribution and wind resistance—especially important for displays 202" and larger.

This is the preferred solution for larger screens in open backyards, coastal regions, or properties where high winds and large-format scale require maximum structural integrity.

What to Coordinate During Site Planning:

Because the dual-pole system spans a wider area and requires two separate foundations, coordination with your contractor and landscape design is critical. Key decisions include:

  • Pole placement and spacing based on your selected display size
  • Foundation locations coordinated with landscape, hardscape, and pool equipment
  • Underground power and signal routing before concrete or pavers are placed
  • Display height and viewing angle aligned with seating and viewing areas
  • Wind zone requirements for your region (coastal areas require additional engineering)
  • Finish options for poles to match your architectural style

Project-specific engineering documentation and installation drawings are provided to your contractor before fabrication begins.

Best Suited For: Large-format displays (202"+), open backyards and pool decks, coastal or high-wind regions, properties where maximum structural stability is non-negotiable.

Foundation Foundation YOLO TV BIGGER BETTER BRIGHTER Pole Spacing Large Display Patio/Deck Surface Dual Pole Frame Mount (Front View from Viewing Area) Maximum Stability Two-pole support system Superior wind resistance Ideal for large displays 202"+

Hanging / Suspension Mount

Suspended from overhead structure for covered outdoor entertainment areas.

This configuration suspends the display from structural beams in your covered patio, pavilion, or pergola. The display hangs from adjustable mounting hardware provided by YOLO TV, allowing you to set the perfect viewing height.

The result: Zero floor obstruction and seamless integration with your existing covered structure.

This is ideal for screen enclosures, pavilions, or covered patios where you want the display overhead without any ground-level support posts.

What to Coordinate During Site Planning:

Because the display suspends from overhead beams, your structure must be engineered to support the load. Key coordination points include:

  • Verification that your overhead beams are structural (not decorative)
  • Load capacity confirmation with your builder or structural engineer
  • Desired viewing height and floor clearance (minimum 7'6" recommended)
  • Power and signal cable routing within your structure or columns
  • Integration timing if you're building a new pavilion or pergola
  • Access for installation and future service from above

YOLO TV provides the hanging hardware system, mounting frame, and installation specifications. Your builder verifies beam capacity and installs attachment points.

Best Suited For: Screen enclosures, covered patios, pergolas, pavilions, locations where floor obstruction must be avoided, existing structures with engineered overhead beams.

YOLO TV BIGGER BETTER BRIGHTER Floor/Deck Surface Hanging / Suspension Mount (Covered Patio / Screen Enclosure) Hanging hardware provided by YOLO TV Adjustable mounting system with zero floor obstruction

Manual Rotation

Adjustable positioning for multi-zone viewing.

This mounting system features a sealed rotation mechanism that allows you to manually reposition the display to serve multiple viewing areas. Whether it's redirecting from pool to patio, adjusting for sun position, or creating viewing zones for different activities, the rotation mount combines permanent installation stability with on-demand flexibility.

The result: One display, multiple viewing zones—without permanent commitment to a single orientation.

This is ideal for L-shaped patios, multi-functional outdoor spaces, or properties where the display needs to serve different areas depending on activity or time of day.

What to Coordinate During Site Planning:

Because the display rotates, you'll need to consider the rotation path and clearance zone. Key coordination points include:

  • Clearance zone for the rotation path (typically 8-12 ft diameter)
  • Obstacles that might interfere with rotation (furniture, planters, posts)
  • Preferred viewing zones and lock positions (typically 3-5 preset angles)
  • Reinforced foundation appropriate for rotational loads
  • Cable management routing (power and signal must accommodate rotation)
  • Access for manual operation and service

Best Suited For: Multi-functional outdoor spaces, L-shaped patios, pool + dining areas, locations where viewing zones change based on activity or time of day, properties where one display serves multiple areas.

YOLO TV BIGGER BETTER BRIGHTER Manual Rotation Mount Materials will be determined by size of YOLO TV and local wind conditions

Every YOLO TV installation is custom-engineered for your specific site conditions, architectural design, and viewing requirements. Work with our team and your architect/builder to select the optimal mounting solution.

Start Your Design Review →
Back to Top
Pricing & Investment

Transparent Investment Ranges for Residential LED Display Systems

Every YOLO TV installation is custom-engineered for its environment. Final investment depends on screen size, indoor vs outdoor placement, site conditions, and optional lift/concealment systems.

🟢 Compact Systems

Starting Around $19,000

108"–138" Diagonal

Typical Range: $19,000–$35,000+

Includes:
  • Large-format LED display system
  • Control processor
  • Standard mounting configuration
  • Professional installation coordination
  • 5-year warranty
Ideal For:
  • • Media rooms
  • • Smaller patios
  • • 8–12 ft viewing distance

Final pricing depends on environment (indoor vs outdoor) and installation conditions.

🔵 Grand Systems

$27,000–$60,000+

158"–220" Diagonal

Most clients land in this range

Includes:
  • Commercial-grade LED panel system
  • Thermal management integration
  • Control system integration
  • Professional installation
  • 5-year warranty
Ideal For:
  • • Great rooms
  • • Outdoor entertainment areas
  • • 12–18 ft viewing distance

Pricing varies based on structural requirements, electrical access, and site complexity.

🔴 Monumental Systems

Custom Engineered Projects

221"–317"+ Diagonal

Investment varies based on scope

Includes:
  • Custom LED wall configuration
  • Engineered mounting or structural integration
  • Optional lift/concealment systems (The Rise)
  • Professional installation & commissioning
  • 5-year warranty
Ideal For:
  • • Estate outdoor environments
  • • Large-scale indoor great rooms
  • • 18+ ft viewing distance

These projects require architectural review and site evaluation prior to final pricing.

What Impacts Final Investment?

Every YOLO TV system is engineered to the site. Final investment depends on screen scale, environment, mounting strategy, and integration scope.

Your Design Review confirms size, viewing distance, power/data requirements, and installation conditions so the scope is accurate before pricing is finalized.

Start Design Review

WHAT IMPACTS FINAL INVESTMENT?

Screen size and pixel pitch
Indoor vs outdoor environment
Viewing distance and mounting height
Sun exposure
AV integration needs
Power and data access
Structural modifications
Optional lift and concealment systems

Related planning factors: viewing distance, pixel pitch selection, enclosure strategy, mounting structure, and control system integration.

Start Design Review →

The Rise™ Collection: Automated Lift & Concealment Systems

Deploy on demand. Conceal when finished.

YOLO TV's Rise™ collection includes multiple engineered lift systems designed to deploy and protect large-format outdoor LED display systems in luxury residential environments.

YOLO TV Rise 158-inch in-ground automated lift system in New Braunfels, TX

YOLO TV Rise 158" / New Braunfels, TX

The Rise™

In-Ground Automated Lift

An in-ground concealment system that deploys your outdoor LED display from a hidden vault below grade. When not in use, the system retracts completely for weather protection and clean architectural lines.

Deploy or conceal in under 60 seconds
Sealed enclosure protects display when stowed
Linear actuator system (3"–36" travel)
App, remote, or voice control
Weather-triggered automatic retraction (optional)
Control4, Crestron, Savant, others integration

Requires vault coordination, drainage planning, electrical rough-in, and structural engineering.

Rise & Rotate™

Adds rotational functionality for dual viewing zones.

Combines vertical lift deployment with controlled rotation, enabling a single outdoor display to serve multiple viewing areas. Ideal for complex outdoor entertainment layouts.

Ideal for:

Pool + patio viewing
Outdoor kitchen + lounge configurations
Multi-direction entertainment spaces

Allows controlled rotation after lift deployment. Engineered for balanced load and wind resistance.

YOLO TV Rise & Rotate 246-inch in Charleston, SC

YOLO TV Rise and Rotate 246" / Charleston, SC

YOLO TV Rise On-The-Go 158-inch at 5K & Half Marathon

YOLO TV Rise on the Go 158" / 5K & Half Marathon

Rise On-The-Go™

A mobile lift system for flexible outdoor deployment.

A self-contained mobile structure that provides Rise™ functionality without permanent in-ground installation. Setup large-format LED displays anywhere on your property or move between locations. Deploys and retracts automatically at the push of a button - no permanent vault or structural modification required.

Designed for:

High-end rental properties
Event-driven entertainment
Rooftop terraces
Properties where in-ground vaulting is not possible

Self-contained lift system. Deploys and retracts automatically at the push of a button — no permanent vault or structural modification required.

Explore the Rise Collection →
Back to Top
Back to Top

Success Stories

Hear directly from YOLO TV owners about their experiences—from design and installation to daily use. Real projects, real results, real testimonials.

Coastal Getaway Video Thumbnail
Watch on YouTube

Coastal Getaway

Pass Christian, MS • 202"

Wife went from doubtful to obsessed after seeing YOLO TV live.

Backyard Sports Stadium Video Thumbnail
Watch on YouTube

Backyard Sports Stadium Experience

Minneapolis, MN • 246"

246" outdoor stadium brilliance that made his backyard the ultimate game-day command center.

Austin Getaway Video Thumbnail
Watch on YouTube

Austin Getaway

Austin, TX • 158"

One press. Lights shift, audio syncs, 158" ignites. Seamless automation that elevates hosting to leadership.

California Dreaming Video Thumbnail
Watch on YouTube

California Dreaming

Long Beach, CA • 202"

202" installation that converted common space into a premium attraction and measurable revenue lift.

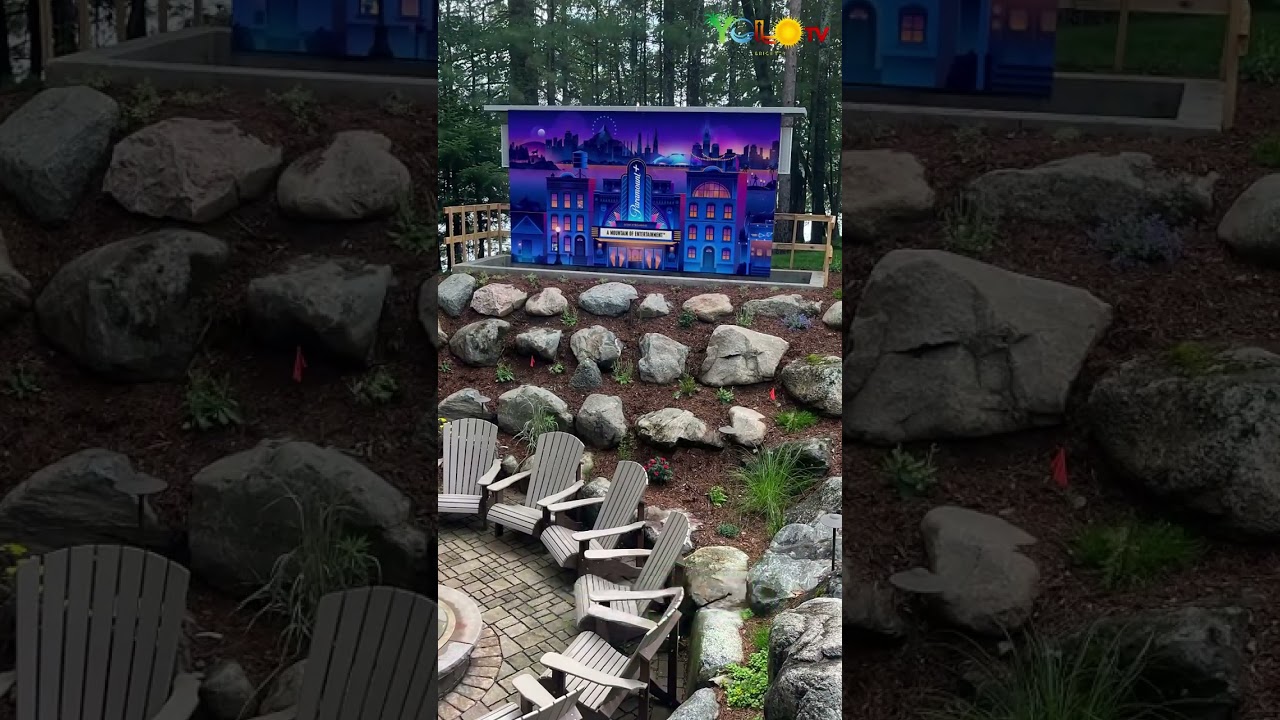

Wisconsin Lake House Video Thumbnail
Watch on YouTube

Wisconsin Lake House

Eagle River, WI • 202" Rise

Press once. 202" display ascends from below — landscape untouched, impact undeniable.

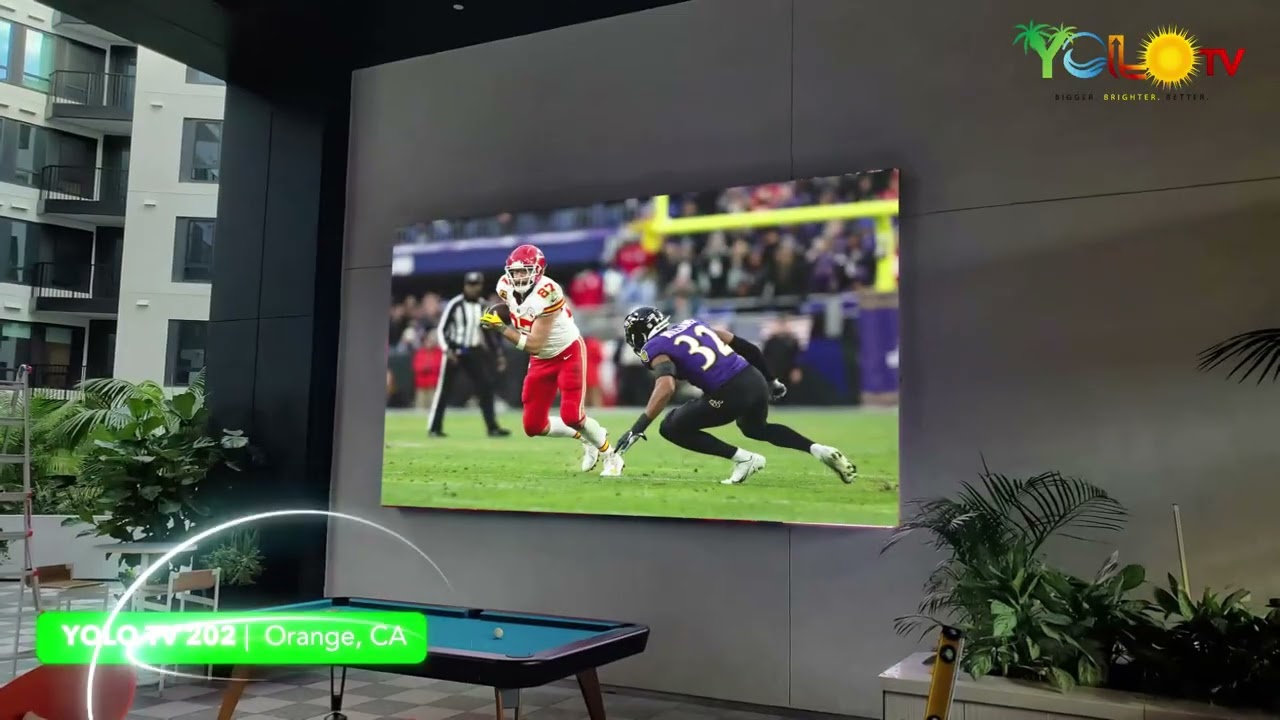

Projects Nationwide Video Thumbnail
Watch on YouTube

Projects Nationwide

Nationwide Installations

From estate basements to rooftops and rising systems, YOLO TV designs displays integrated into architecture.

Join hundreds of satisfied YOLO TV owners who have transformed their entertainment spaces with the ultimate in residential LED display technology.

Start Your Project Today →
Back to Top

Warranty & Service

All YOLO TV systems include comprehensive five-year residential warranty with direct technical support.

YOLO TV five-year warranty - professional LED components and enclosures

Engineered to Endure. Backed for Five Years.

Not a consumer television. A permanent installation.

A YOLO TV system is a permanently installed residential LED display system engineered for long-term performance in demanding indoor and outdoor environments.

Every system includes a comprehensive five-year residential warranty covering:

LED panel performance
Control processors
Mounting systems and enclosures
In-Shop labor for covered components

Because architectural-scale installations should be permanent — not temporary electronics.

Comprehensive Coverage

Five full years of protection.

LED panels, processing systems, mounting hardware, and protective enclosures are covered under normal residential use for five full years.

Our systems are engineered for long-term performance in demanding indoor and outdoor environments.

YOLO TV modern home display with comprehensive warranty coverage
YOLO TV professional technician providing direct expert support

Direct Expert Support

YOLO TV specialists. Not third-party call centers.

Remote diagnostics, firmware updates, and service coordination are handled by YOLO TV specialists who understand architectural-scale LED display systems.

When required, on-site service is coordinated to maintain system integrity. On-site service costs are not included in the parts warranty.

Built for the Long Term

Technology evolves. Your system should evolve with it.

Beyond the standard warranty, upgrade pathways and long-term service options are available for select clients.

Panel upgrade paths and system expansion options ensure your investment remains current as display technology advances.

YOLO TV professional installation team with large-format LED display
YOLO Black Reserve luxury estate program
YOLO Black Reserve
Priority Access. Extended Service. Long-Term Continuity.

Select installations qualify for YOLO Black Reserve — a private client tier designed for homeowners who expect their technology to evolve with their property.

Members receive priority service access, extended coverage options, and structured upgrade pathways.

Details are shared privately during your design consultation.

Schedule Your Design Review →
Get Started

Begin With a Design Conversation

Every YOLO TV installation begins with a design consultation. We'll discuss your space, viewing preferences, and budget to create a custom solution that exceeds your expectations.

Schedule a design review to discuss project scope, dimensional planning, structural requirements, control system integration, and installation timeline. We provide comprehensive specifications for coordination with GC, millwork, and AV integrator.

Direct Consultation

Phone

(844) 4YOLOTV (844) 496-5688

Email

[email protected]

Hours

Monday–Friday: 8 AM – 6 PM CST
